Heart failure – Elevated filling pressures

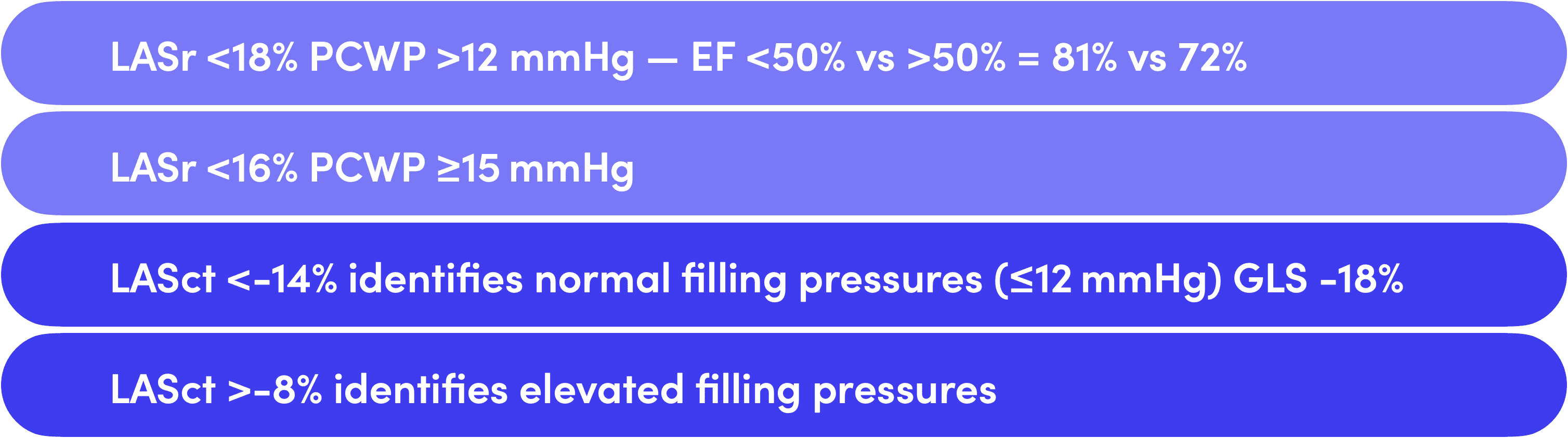

Determine the indeterminate through LA Strain

  • Pathological LA Strain is better than LAVI — 62% vs 34% — in detecting DD

  • LA Strain + LAVI — better detection of DD

  • LASr <23% — double the hospitalisations & 1 NYHA class higher compared to LASr >23%

  • LASr 18% vs 23% in HTN as a prognostic marker for a positive diastolic stresstest

Morris D. et al., JACC CVI 2018; Katsuji Inoue et al., 12/2021; Mazur et al., Kardiologiia 2022

Elevated vs. normal filling pressures

LA Strain examples

Hypertrabeculation with HF
— elevated filling pressures likely
(LASr 17%, LASct -8%)

Hypertrabeculation with HF — elevated filling pressures likely
(LASr 17%, LASct -8%)

Hypertrabeculation with HF
— normal filling pressures likely
(LASr 35%, LASct -16%)

Hypertrabeculation with HF — normal filling pressures likely
(LASr 35%, LASct -16%)

HFpEF compensated with normal filling pressures (LASr 35%, LASct -21%)

HFpEF compensated with normal filling pressures
(LASr 35%, LASct -21%)

HFpEF compensated with normal filling pressures
(LASr 35%, LASct -21%)
