Normal values Strain Imaging — RA Strain

  • Don’t cut off the RA roof

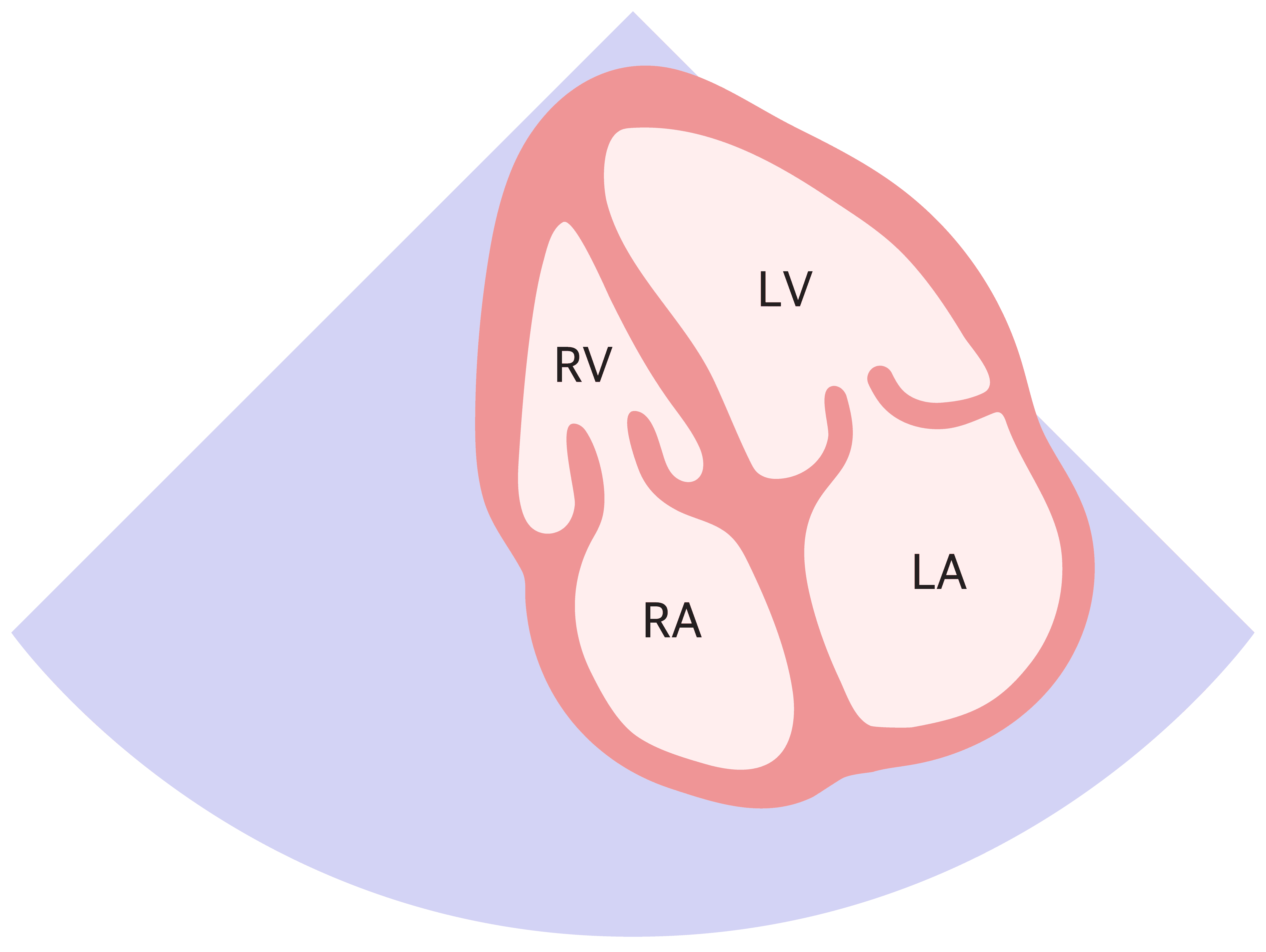

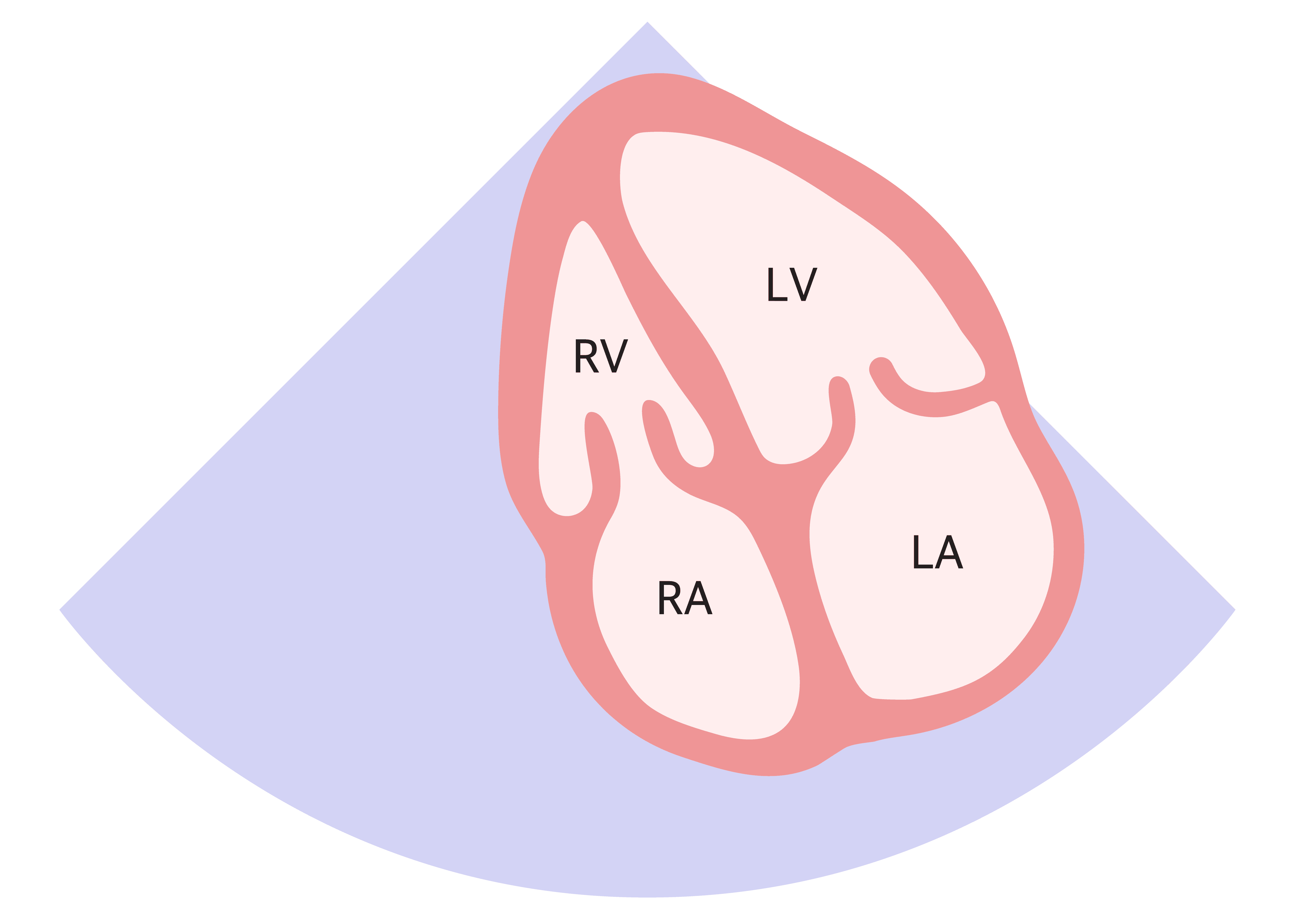

  • RA Strain is measured in the 4-ChV

  • A focus (optimal image) should be on the RA

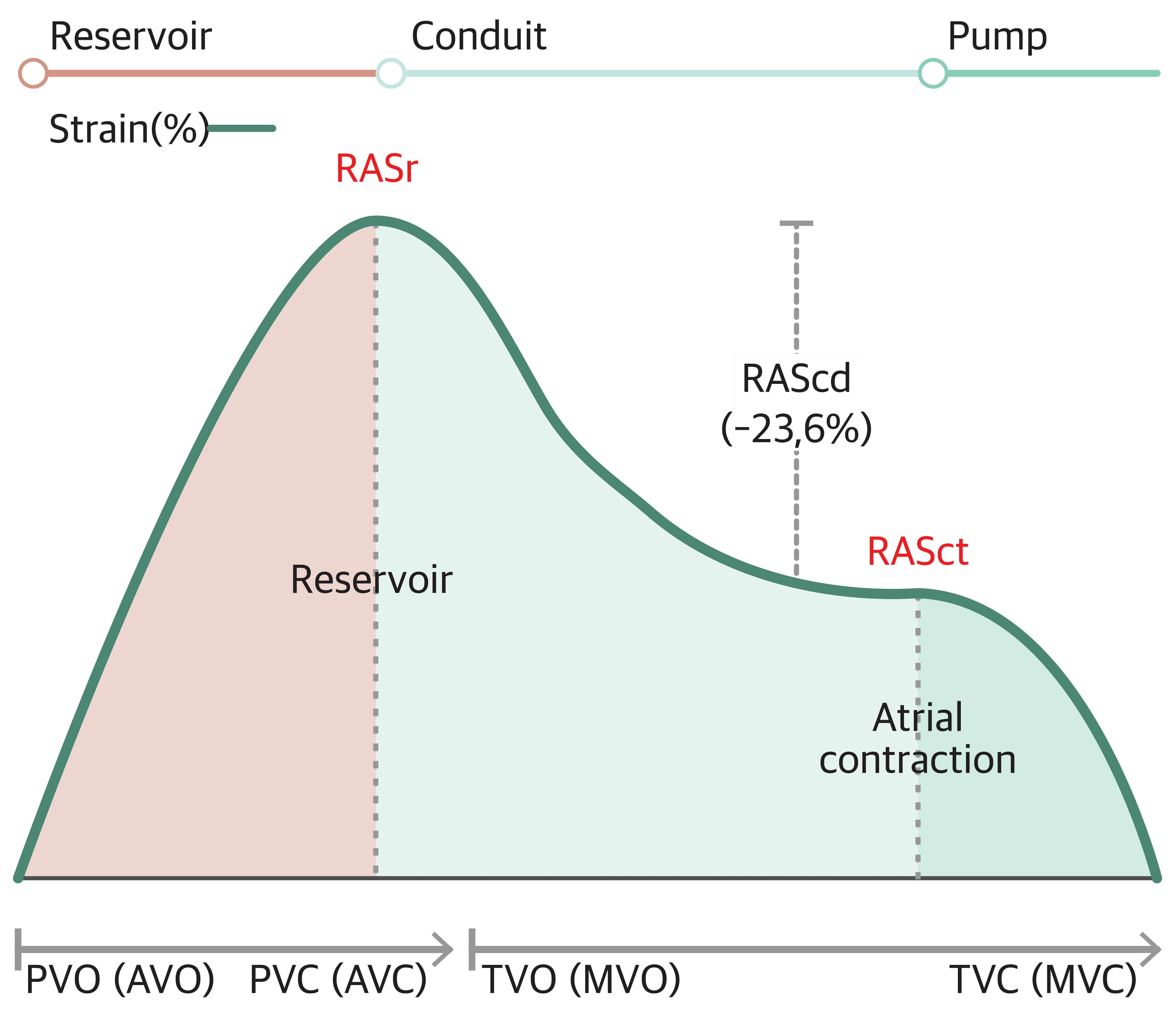

RASr: Right atrial stain reservoir

(normal value around 42,7%)

RASct: Right atrial strain contraction

(normal value around -16,1%)

PV/AVO: Pulmonic/aortic valve opening

PV/AVC: Pulmonic/aortic valve closure

TV/MVO: Tricuspid/mitral valve opening

TV/MVC: Tricuspid/mitral valve closure

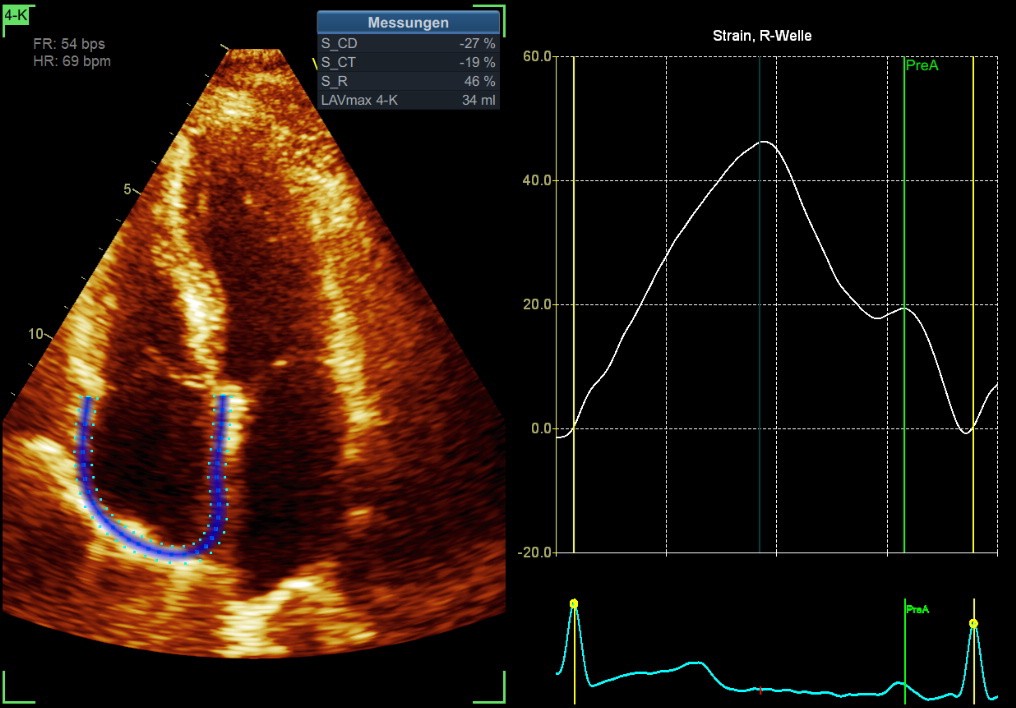

Normal RA Strain

Frame rate 54/sec







ROI with color codes




Frame rate 54/sec





ROI with color codes






RASr 46%

RAScd -27%

RASct -19%


Atrial contraction


  • EKG — R is easier identified than the P-wave

  • Pre-a has to be adapted sometimes



RASr 46%
RAScd -27%

RASct -19%

Atrial contraction

  • EKG — R is easier identified than the P-wave

  • Pre-a has to be adapted sometimes

Focused RA

Focused RA

Frame rate 54/sec
ROI with color codes
RASr 46%
RAScd -27%

RASct -19%

Atrial contraction

  • EKG — R is easier identified than the P-wave

  • Pre-a has to be adapted sometimes
